lithium iron phosphate battery for solar systems 48v solar lifepo4 lithium battery 48v 200ah 48v battery

2022-02-15 06:02

స్పెసిఫికేషన్

మోడల్
2022-AIN48V50AH
2022-AIN48V100AH
2022-AIN48V150AH
2022-AIN48V200AH
నామమాత్రపు వోల్టేజ్ (వి)
48 వి
48 వి
48 వి
48 వి
నామమాత్ర సామర్థ్యం (ఆహ్)
50
100
150
200
ఉపయోగించగల సామర్థ్యం (Wh)
2400
4800
7200
9600
పరిమాణం (మిమీ)
442*385*132
442*410*220
442*450*250
442*450*280
బరువు (కిలోలు)
29
44
68
91
సైకిల్ జీవితం
4000~6000 , 25℃
4000~6000 , 25℃
4000~6000 , 25℃
4000~6000 , 25℃
Communication Port
RS232 .RS485 .CAN RS232 .RS485 .CAN RS232 .RS485 .CAN
ఛార్జ్ వోల్టేజ్ (వి)
53.2~54
53.2~54
53.2~54
53.2~54
అంతర్గత ఇంపెడెన్స్ (mΩ)
≤50
≤50
≤50
≤50
ఛార్జ్ / డిశ్చార్జ్ కరెంట్ (ఎ)
10 (Recommended)
20 (Recommended)
30 (Recommended)
40 (Recommended)
డిజైన్ లైఫ్ (ఇయర్స్)
12
12
12
12

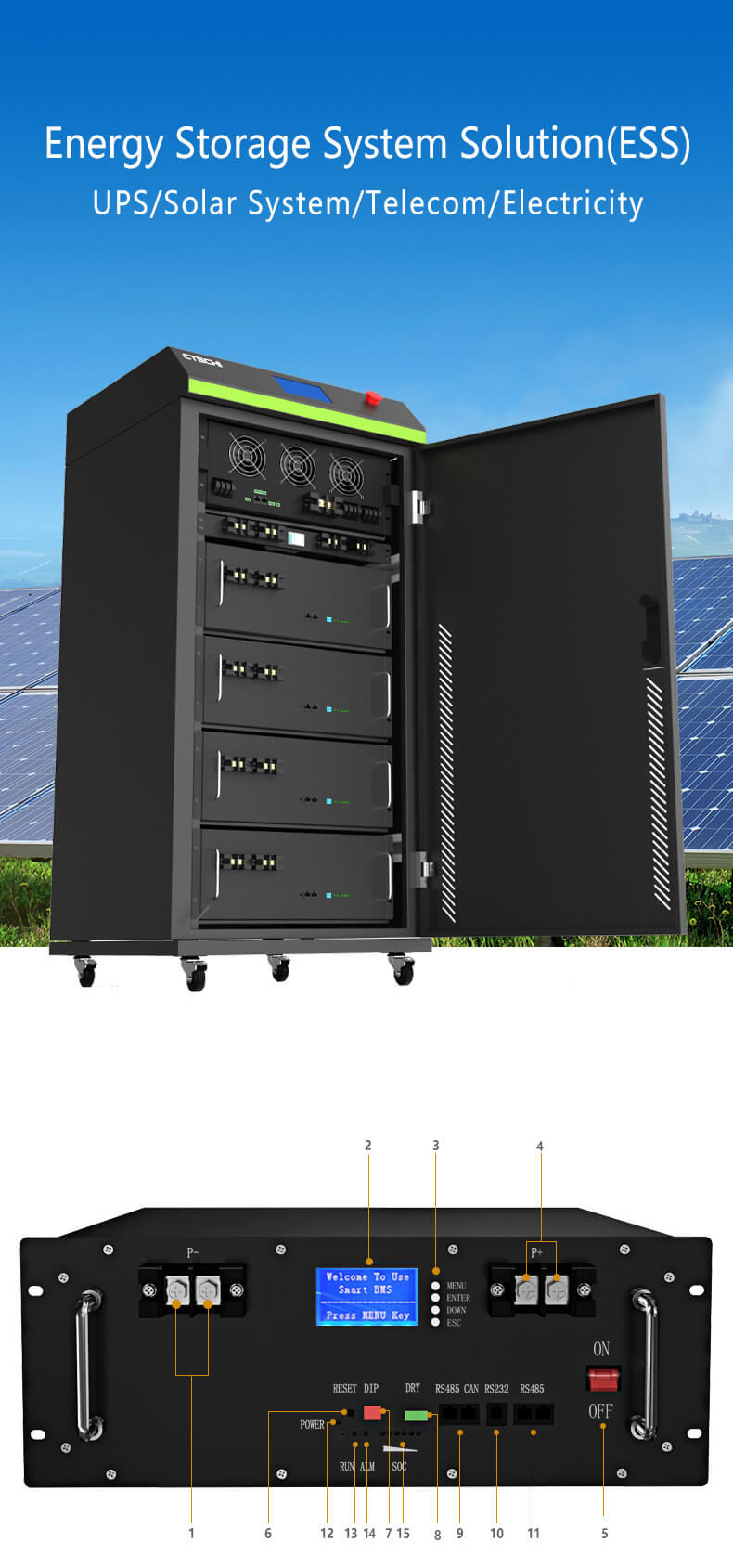

<div">Item
పేరు
Definition
1
Negative socket
Battery output or parallel cathode line
2
LCD Monitor
Lcd display
3
Menu button
4
Positive socket
Battery output or parallel anode line
5
పవర్ స్విచ్
OFF/ON, remains ‘ON’ when using
6
RESET
7
DIP
8
DRY
9
CAN/485
CAN/485 Communication Port communication (factory default CAN communication)
10
RS232
Multiple interfaces possible
11
RS485-2
Multiple interfaces possible
12
శక్తి
13
RUN
Green light, flashing when standby, always on when discharge, flash when charging
14
ALM
Red lights, flash when warning, always on when protection. When the condition of triggering protection is removed, the battery
can
15
SOC
Green light, showing battery capacity

ఫీచర్

1.Longer Cycle Life : Offers up to 20 times longer cycle life than lead acid battery. Over 2000 cycles, also the cell is able to deliver virtually full power, helps to minimize replacement cost and reduce total cost of ownership
2.Lighter Weight : About 40% of the weight of a comparable lead acid battery, easy to move and install. It is an ideal choice for outdoor camping power supply and simple indoor installation.
3. Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
4. Wider Temperature Range : -20℃~65℃
5. సుపీరియర్ సేఫ్టీ: లిథియం ఐరన్ ఫాస్ఫేట్ కెమిస్ట్రీ అధిక ప్రభావం ఓవర్ఛార్జింగ్ లేదా షార్ట్ సర్క్యూట్ పరిస్థితి కారణంగా పేలుడు లేదా దహన ప్రమాదాన్ని పెంచుతుంది.
6. BMS సమగ్ర రక్షణ: లిథియం బ్యాటరీ అంతర్నిర్మిత బ్యాటరీ మేనేజ్‌మెంట్ సిస్టమ్ (BMS) ను కలిగి ఉంది, ఇది ఓవర్‌ఛార్జింగ్, డీప్ డిశ్చార్జ్, ఓవర్‌లోడ్, ఓవర్ హీటింగ్ మరియు షార్ట్ సర్క్యూట్ మరియు తక్కువ స్వీయ-ఉత్సర్గ రేటు నుండి రక్షించగలదు
7. విస్తృత అప్లికేషన్: RV, కారవాన్, మెరైన్, బోట్, ఓవర్‌ల్యాండ్, బ్యాకప్ విద్యుత్ సరఫరా మరియు ఆఫ్ గ్రిడ్ అప్లికేషన్‌లకు అనుకూలం.
మా ప్రాజెక్టులు
మా ఫ్యాక్టరీ

ఎఫ్ ఎ క్యూ

1. Does the shipping way to our country include tax?
-ఇది మీరు ఎంచుకున్న దేశం మరియు షిప్పింగ్ మార్గంపై ఆధారపడి ఉంటుంది. చాలా ఆసియా దేశాలు, చాలా ఐరోపా దేశాలు, యునైటెడ్ స్టేట్స్ మరియు కెనడాలో పన్నుతో కూడిన షిప్పింగ్ మార్గాలు ఉన్నాయి.

2. Why the transportation time is so long and the tracking number not updated in nearly a month?
-మీకు తెలిసినట్లుగా, బ్యాటరీ (ముఖ్యంగా అధిక-శక్తి బ్యాటరీ) ప్రత్యేక వస్తువు, రవాణా నిబంధనలు చాలా కఠినంగా ఉంటాయి. మేము మా ఉత్పత్తులను అధికారిక DG లాజిస్టిక్ ఛానెల్ ద్వారా రవాణా చేస్తాము, ఇది సాధారణ లాజిస్టిక్ కంటే నెమ్మదిగా ఉంటుంది, ఎందుకంటే దీనికి DG షిప్/రైలు షెడ్యూల్ వేచి ఉండాలి. ఉత్పత్తి మరియు లాజిస్టిక్ ప్రత్యేకత కారణంగా, మేము అందించే ట్రాకింగ్ నంబర్ వస్తువులు మీ దేశంలో కస్టమ్స్ పాస్ అయ్యే ముందు అప్‌డేట్ చేయబడవు. చింతించకండి, మీ వస్తువులు ఇప్పటికీ సాధారణ రవాణాలో ఉన్నాయి. మీ దేశంలో కస్టమ్స్ ద్వారా వస్తువులు పాస్ అయినప్పుడు, ట్రాకింగ్ సమాచారం అప్‌డేట్ చేయబడుతుంది, మరియు మీరు దానిని 3-5 రోజుల్లో అందుకుంటారు.

3. Is this product safe?
-పరీఛార్జ్, ఓవర్ డిశ్చార్జ్, ఓవర్ టెంపరేచర్, షార్ట్ సర్క్యూట్, ఆక్యుపంక్చర్ మరియు ఇతర భద్రతా పరీక్షలు, అగ్ని లేదు, ఏ సందర్భంలోనూ పేలుడు జరగలేదు.

4. How to confirm the high quality of the product you sent me?
-మా బ్యాటరీలన్నీ గ్రేడ్ A, మీరు ఎంత ఆర్డర్ చేసినా, బయటకు పంపే ముందు మేము ప్రతి ఉత్పత్తిని పరీక్షిస్తాము.

5. The battery is so heavy, will it damaged easily on the road?
-ఇది కూడా మాకు చాలా గొప్ప విషయం. దీర్ఘకాలిక మెరుగుదల మరియు ధృవీకరణ తర్వాత, మా ప్యాకేజింగ్ ఇప్పుడు చాలా సురక్షితం మరియు నమ్మదగినది. మీరు ప్యాకేజీని తెరిచినప్పుడు, మీరు ఖచ్చితంగా మా చిత్తశుద్ధిని అనుభవిస్తారు.

6. Is it OK to print my logo on the product?
-అవును. దయచేసి మా ఉత్పత్తికి ముందు మాకు అధికారికంగా తెలియజేయండి మరియు మొదట మా నమూనా ఆధారంగా డిజైన్‌ను నిర్ధారించండి.

గమనిక: మేము బ్యాటరీ తయారీదారు. అన్ని ఉత్పత్తులు రిటైల్‌కు మద్దతు ఇవ్వవు, మేము B2B బిజినెస్ మాత్రమే చేస్తాము. దయచేసి ఉత్పత్తి ధరల కోసం మమ్మల్ని సంప్రదించండి!
