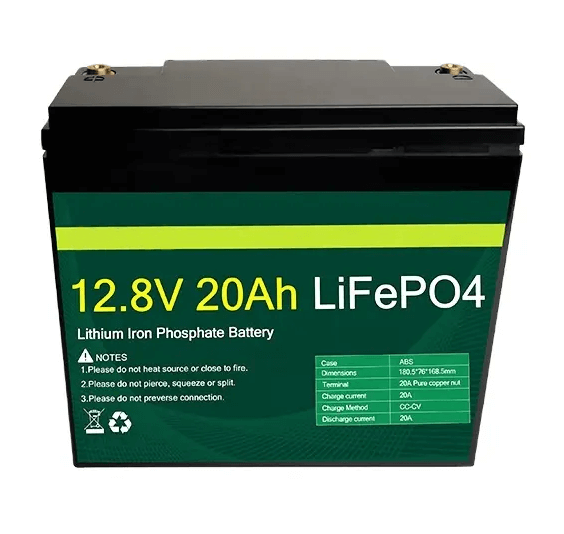

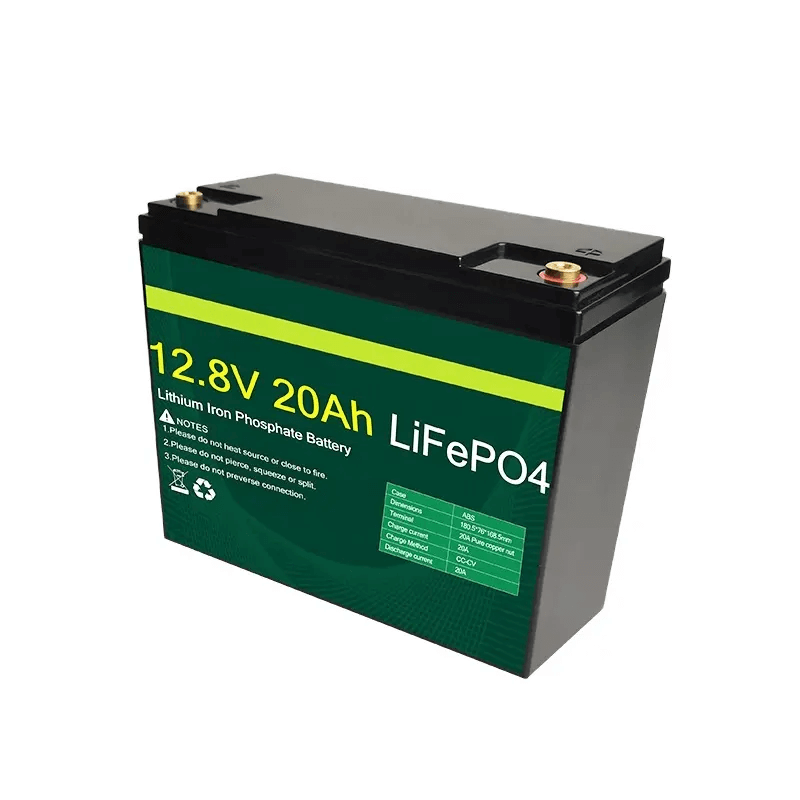

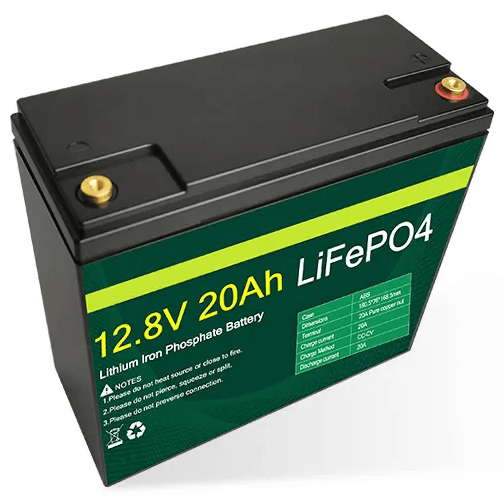

స్పెసిఫికేషన్
ITEM | VALUE |
నామమాత్రపు వోల్టేజ్ (వి) | 12.8 వి |
Nominal Capacity (Ah) | 20 అ |

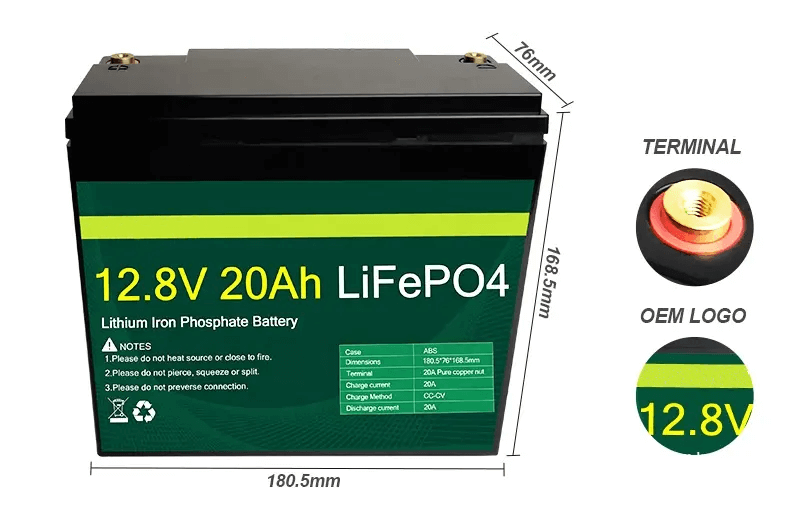

Dimension (L*W*H)mm | 181*76*170 |
Battery Case Type | Waterproof ABS Case IP56 |
Energy Wh | 256Wh |
Charge Voltage max (V) | 14.6 వి |
Charge current Max (AMPS) | 4A standard, max 10A |
Discharge Cut-off Voltage(V) | 10.0 V |
Discharge Current max (AMPS) | 10Amps max continuous |
Battery Material | లిథియం ఐరన్ ఫాస్ఫేట్ బ్యాటరీ |
Battery Cell Type | Lifepo4 battery cell 3.2V 6000mAh ,Cylindrical lifepo4 cell |
Composed Way | 4S3P Lifepo4 battery pack 12V 10Ah |
సైకిల్ జీవితం | 2500 times at 85%dod5000 times at 65% dod 8000 times at 40% dod |
Storage Temperature (℃) | 0-45 |
Work Temperature (℃) | -20℃-60℃ |
Weight (KG) | Net 2.2KG, gross 2.5Kgs |
OEM Label Brand /Package Orders | Acceptable , OEM Label: MOQ 100PCS OEM Package: MOQ 100PCS |
Key features
- Vehicle-grade craft, there are multiple isolation and fixing inside the battery pack, which is conducive to heat dissipation
- The shell is anti-aging, anti-corrosion, fireproof and waterproof
- It replaces lead-acid batteries, which is 50% lighter
- Wide temperature operation
- Safe and reliable, no explosion.
- Variety of protections, overcharge, over discharge, over current, over-temperature protection
- Easy operation, plug and play.
అప్లికేషన్
* LED light system
* Tourist car battery
* EV bus battery
* Car battery
* electric bus battery
* Solar battery / solar panel battery
* -Portable VTR/TV, tape recorders, radios, etc.
* -Power tools, lawn mowers and vacuum cleaners
* -Cameras and photographic equipment
* -Portable measuring equipment
* -Various power toys and recreational equipment
* -Uninterruptible Power Supply
* -Communications and electric equipment
* -Emergency lighting equipment
* -Various power toys and recreational equipment
* -Uninterruptible Power Supply
* -Communications and electric equipment
* -Emergency lighting equipment
మా ఫ్యాక్టరీ
ఎఫ్ ఎ క్యూ
ప్ర: నేను ఎలా చెల్లించాలి? మీరు ఏ చెల్లింపు పద్ధతులను అంగీకరిస్తున్నారు?
జ: టి / టి, పేపాల్, వెస్ట్రన్ యూనియన్ & ట్రేడింగ్ అస్యూరెన్స్ ఆమోదయోగ్యమైనది.
ప్ర: నమూనా ఆర్డర్ ఆమోదయోగ్యమైనదా?
జ: అవును, చాలా బ్యాటరీలకు, నాణ్యతను పరీక్షించడానికి నమూనా ఆర్డర్లు సహేతుకమైనవి మరియు ఆమోదయోగ్యమైనవి.
Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from famous brands. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection before shipment.
Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.
Q: What is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For those that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.
Q: What is your warranty?
A: We guarantee the quality before the item is shipped. You can enjoy 30-day free refund, 4-month free replacement, and lifetime maintenance service from the date of delivery. Any damages caused by improper use are not covered by our warranty.
